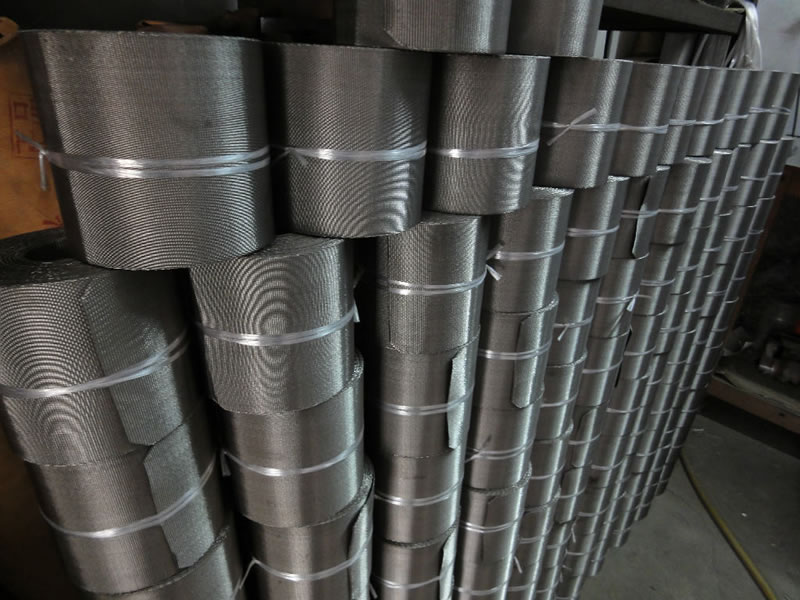

Dutch Woven Wire Mesh

  You are here:  Home > Products > Stainless Steel Wire Mesh > Dutch Woven Wire Mesh
Stainless Steel Wire Mesh
< >

Dutch Woven Wire Mesh

Material: Stainless steel, Special alloy
Feature: Excellent resistance against acid
Application: Filtering and Sieving


Dutch Weave wire mesh is produced by the use of coarse mesh (mesh wire, woven wire mesh, wire mesh basket) in the warp and a fine mesh with relatively smaller wire in the weft. This weave results in greater strength with very fine openings and is primarily used as a filter cloth. The shape and position of the openings and particle retention and increase filter cake formation.

Material: Stainless steel 304, 304L, 316, 316L, Brass, Copper, Bronze, Duplex Steel, Super Duplex Steel, Monel, Inconel, Harrington Alloy, Nickel Mesh, Titanium Mesh, Special Alloy etc.

Length:30m per roll.

Width:0.1m-6m.

Weave ways: plain weave , twill weave , bamboo-form weave , reverse weave.

Featute: Good wear-resistance, Heat-resistance, Acid-resistance, Corrosion resistance and characteristics.

Application: the prodcution is mainly applied to filter  chemical industry, medicine, petroleum, telecom-communication, scientific research units or other applications.

Mesh Wire Diameter Weave
Warp Shute
in mm in mm
12x64 0.023 0.58 0.0165 0.42 Plain Dutch
14x88 0.019 0.48 0.012 0.30 Plain Dutch
14x110 0.016 0.40 0.011 0.28 Plain Dutch
24x110 0.014 0.355 0.010 0.25 Plain Dutch
30X150 0.009 0.23 0.007 0.18 Plain Dutch
40X200 0.007 0.18 0.0055 0.14 Plain Dutch
50X250 0.0055 0.14 0.0045 0.11 Plain Dutch

Twill Dutch Weave Mesh
Mesh/Inch Warp*WeftWire Dia. Warp*Weft
(mm)
Aperture Size(µm)Available Area(%)Weight(kg/m²)Thickness(mm)
20*2700.25*0.211917.63.140.65
20*2000.355*0.2811812.14.580.915
24*3000.28*0.1811019.63.010.64
20*1500.45*0.3551017.56.021.16
30*3400.28*0.168917.92.840.6
30*2700.28*0.207711.23.410.68
40*5400.18*0.107023.51.730.38
40*4300.18*0.1256315.42.090.43
50*6000.125*0.095117.21.470.305
50*5000.14*0.1147121.830.364
65*6000.14*0.09361.590.32
70*6000.14*0.093110.11.61
78*7600.112*0.07113.51.250.254
78*6800.112*0.082910.31.370.272
80*6800.112*0.08289.81.38
90*8500.10*0.0632612.71.120.226
90*7600.10*0.071249.61.230.242
100*8500.10*0.06322101.140.226
130*15000.063*0.0362118.60.640.135
100*7600.10*0.071207.41.250.242
130*12000.071*0.04518120.80.161
130*11000.071*0.05179.40.870.171
150*14000.063*0.041511.40.710.143
160*15000.063*0.03612.40.670.135
165*15000.063*0.0361411.4
174*17000.063*0.0321312.90.620.127
165*14000.063*0.048.80.730.143
174*14000.063*0.04117.40.74
203*16000.05*0.032109.30.580.114
216*18000.045*0.039.40.530.105
203*15000.056*0.03696.20.670.128
250*19000.04*0.02887.80.510.096
250*16000.05*0.0323.80.630.114
285*21000.036*0.02577.20.440.086
300*21000.036*0.02566
317*21000.036*0.02554.7
325*23000.036*0.02444.2
363*23000.032*0.0224.50.40.076
400*27000.028*0.024.70.360.068
500*35000.025*0.01534.90.30.055
